MonkiiPad16

16 keys, an OLED, and a knob you turn to switch layers.

Customize the Keymap → Files on GitHub →

Specifications

Layout	16 keys (4×4 grid)

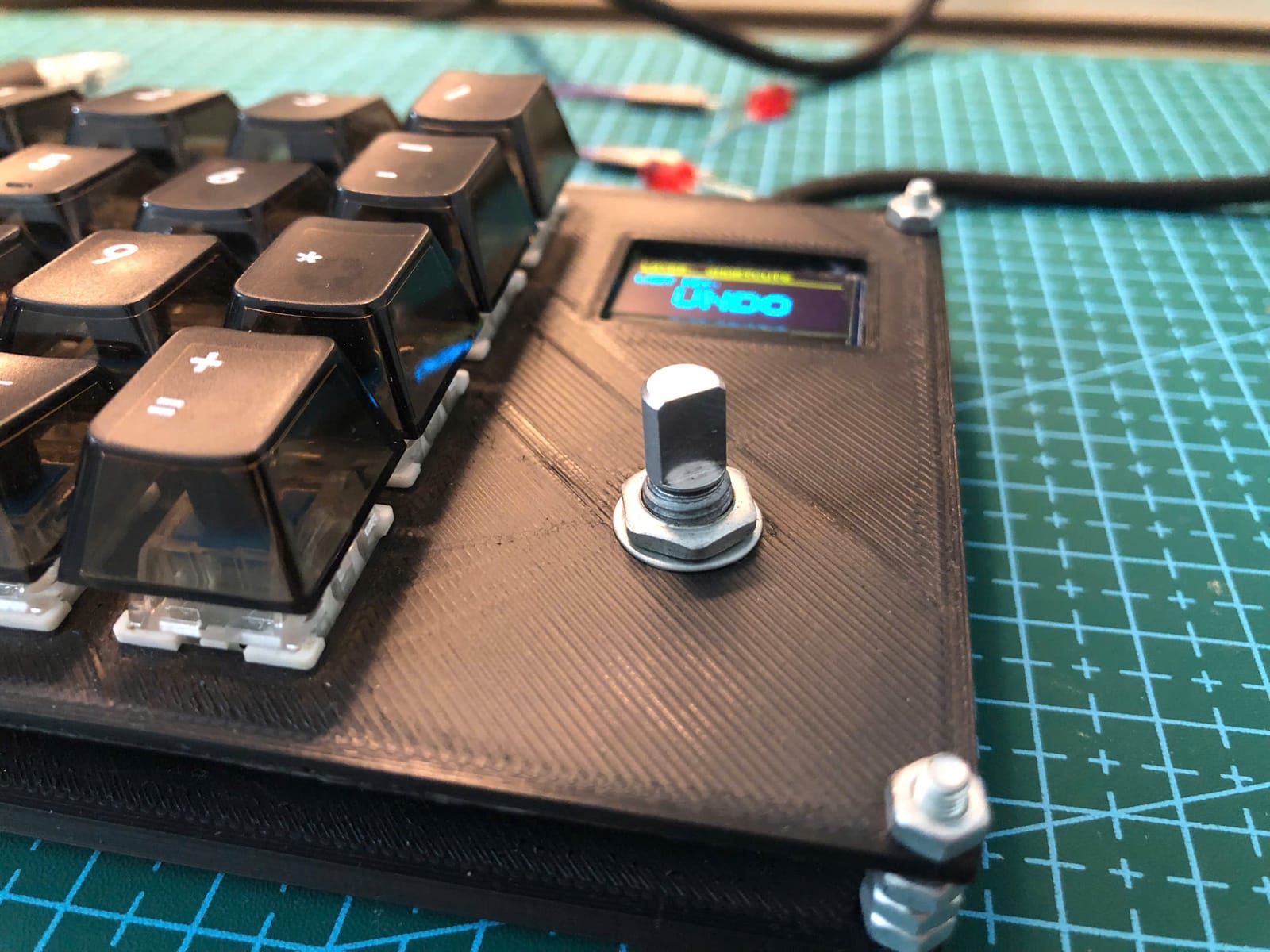

Knob	Rotary encoder w/ push
Display	0.96" OLED (SSD1306)
Build	Handwired

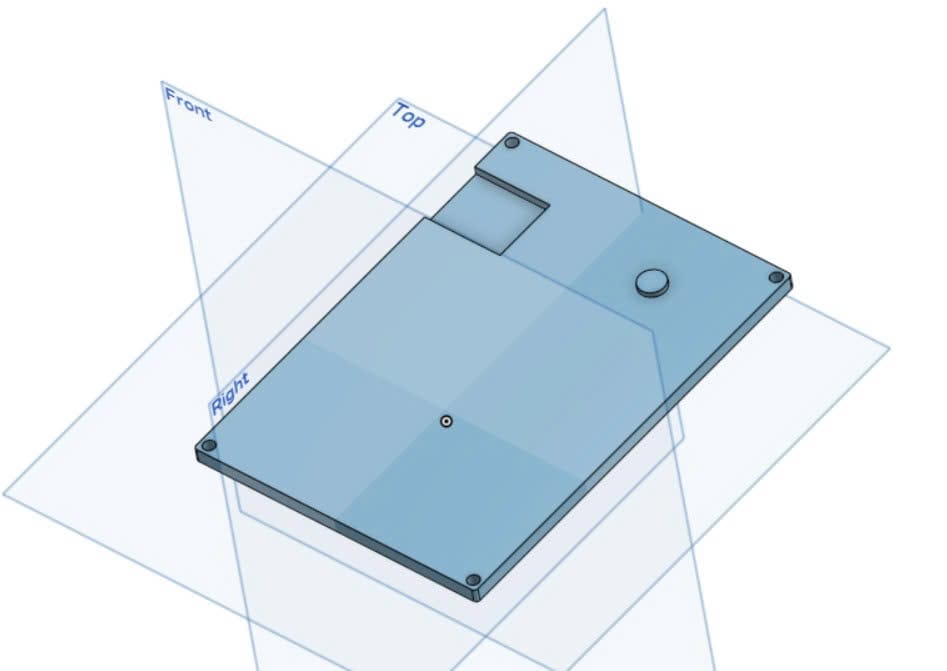

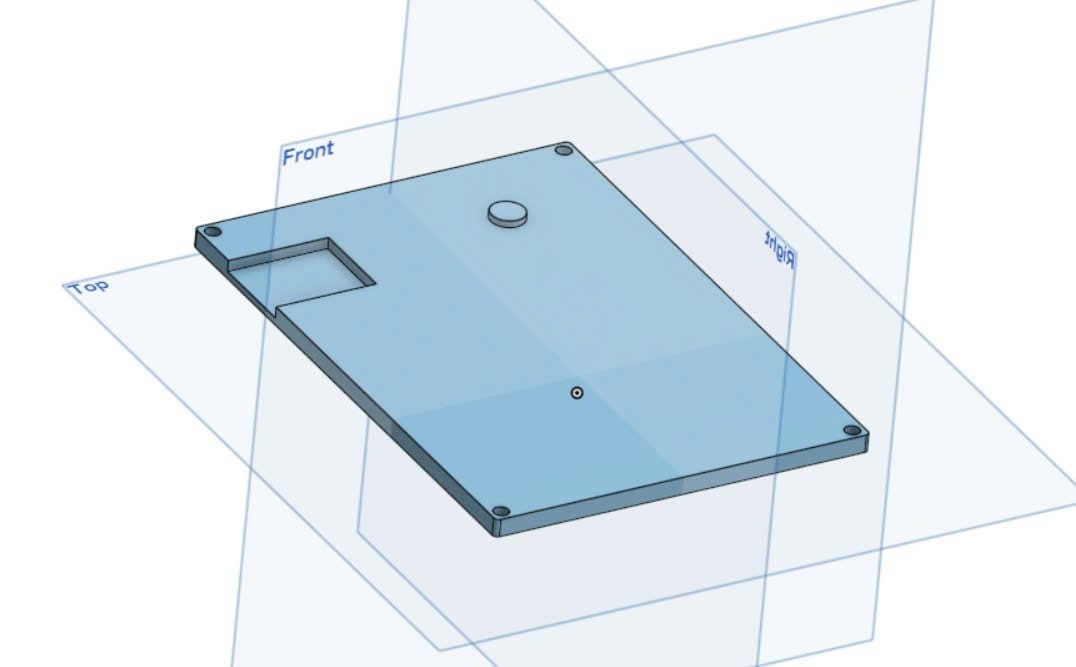

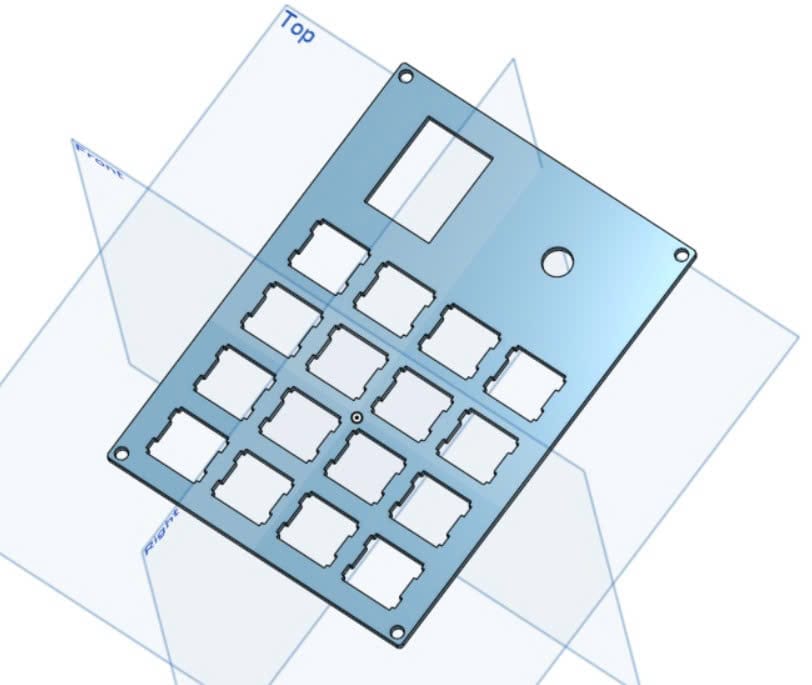

Plate	3D Printed (OnShape)
Controller	RP2040 Zero
Firmware	Arduino
Connectivity	USB-C

About This Design

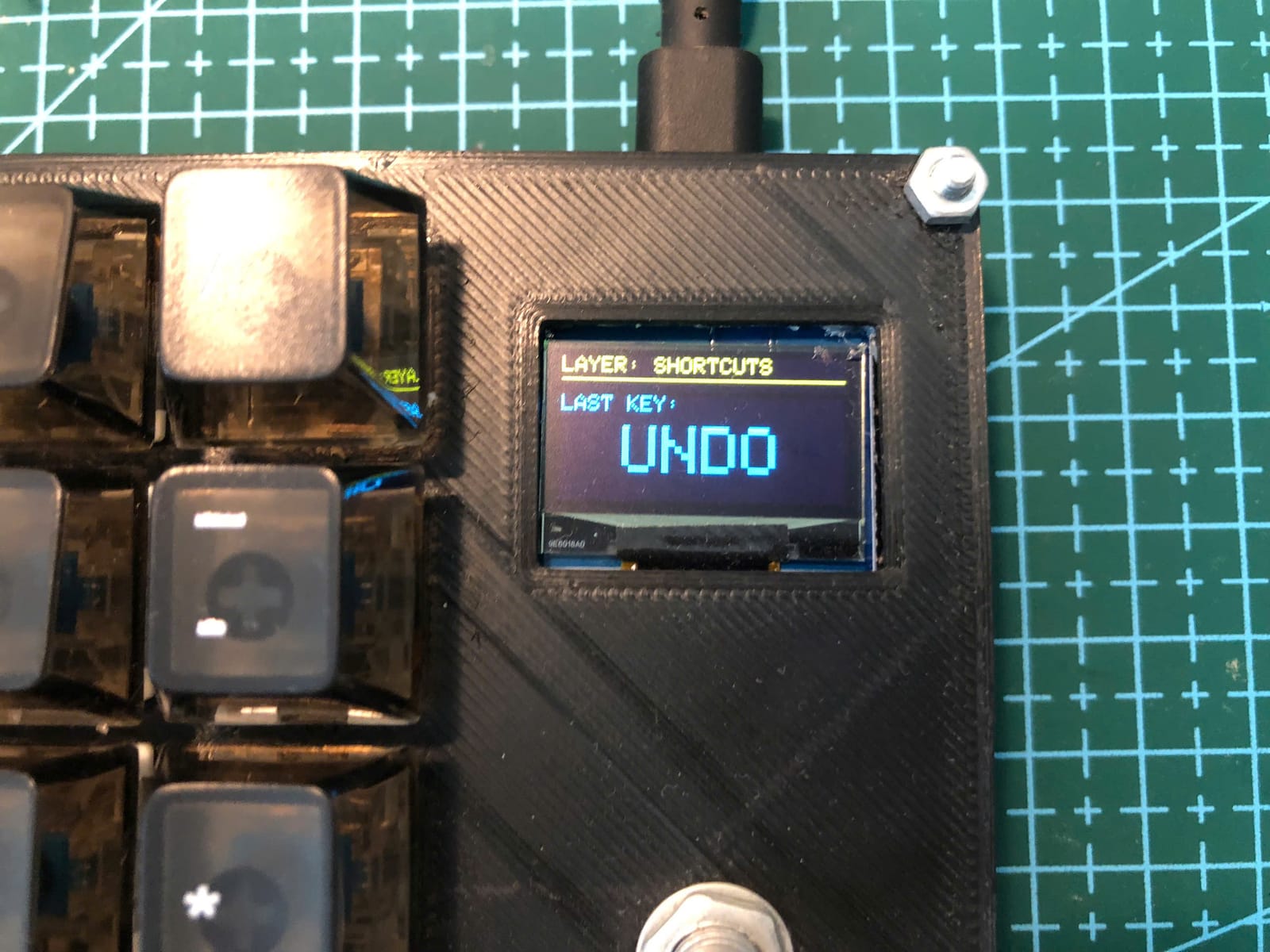

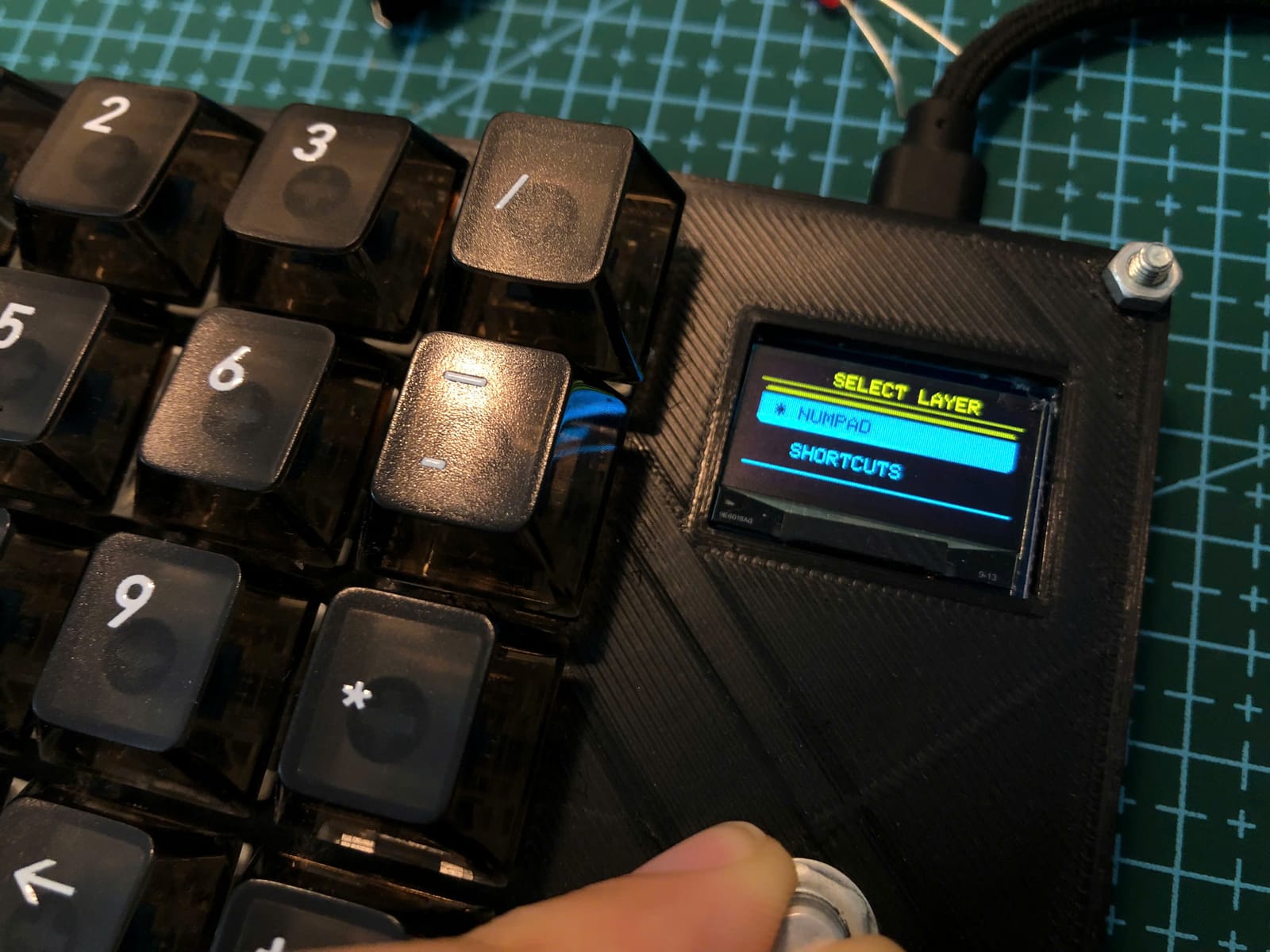

The MonkiiPad16 is our newest macropad, a 4×4 grid of programmable keys with a 0.96" OLED screen and a rotary knob sitting alongside it. Turn the knob and the screen brings up a layer menu, click it and the new layer is live, so a numpad becomes a wall of editor shortcuts without you ever taking your hands off the pad. It runs on an RP2040 Zero, it is handwired on 3D-printed plates like everything else we make, and the plate files and firmware are all on GitHub. A full build guide is on the way.
