MonkiiPad3x3 PCB

Nine keys, no handwiring. The easiest board we have drawn.

See the handwired version → Files on GitHub →

Specifications

Layout	9 keys (3×3 grid)
Build	Printed circuit board
Plate	3D Printed (OnShape)
Controller	Pro Micro ATmega32U4
Firmware	Arduino (same as handwired)
Connectivity	USB-C (via Pro Micro)
Status	Designed — not yet fabricated

About This Design

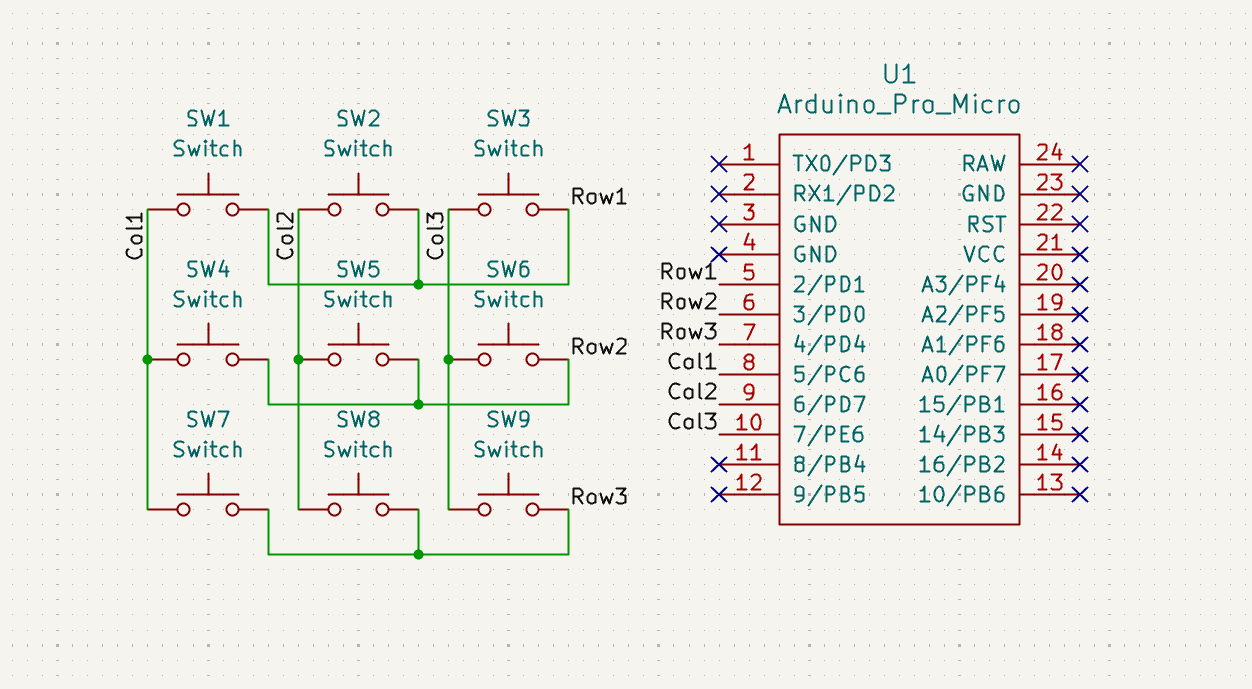

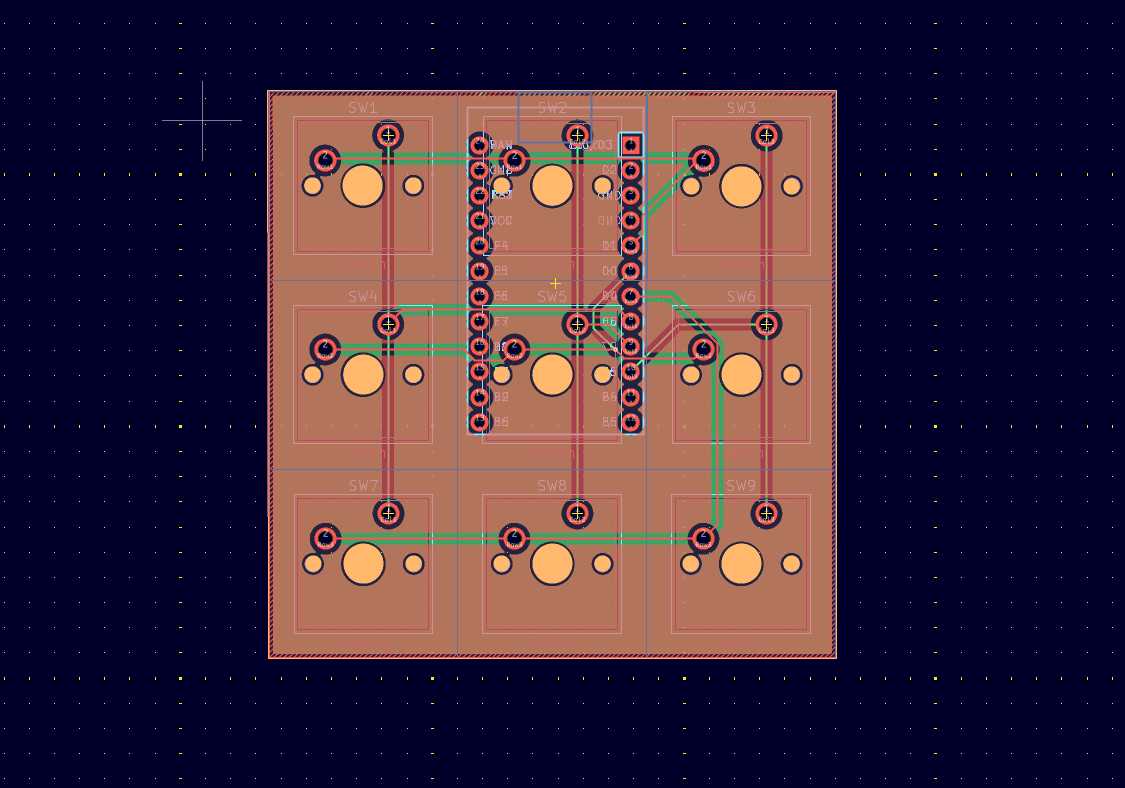

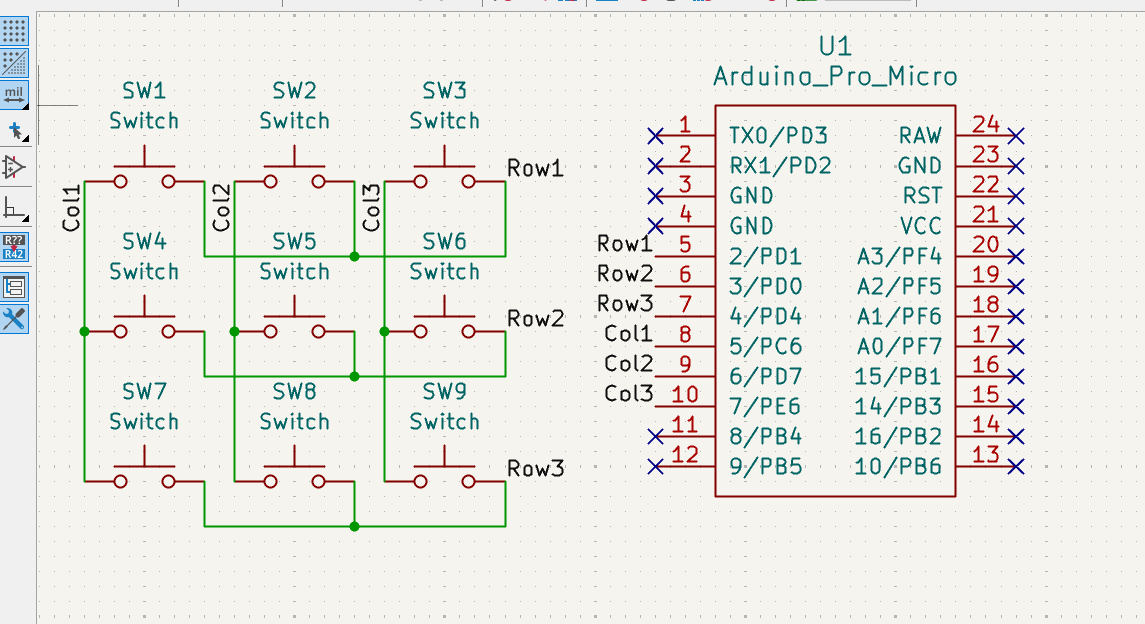

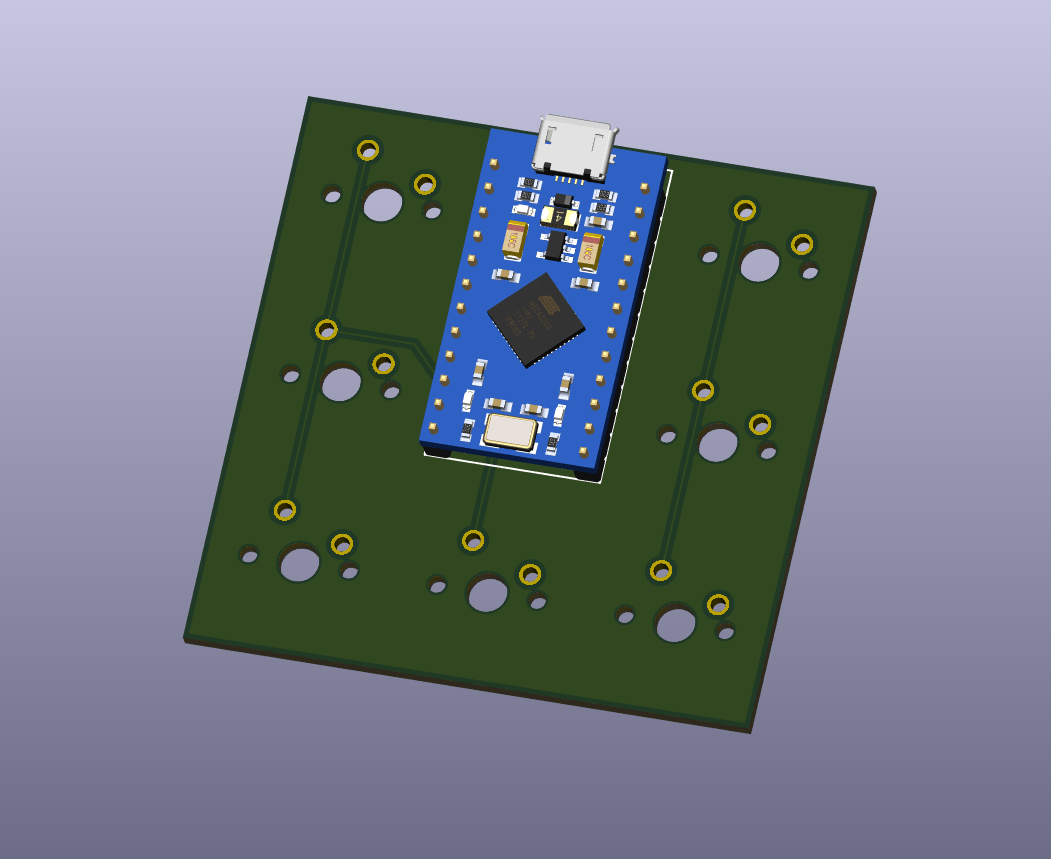

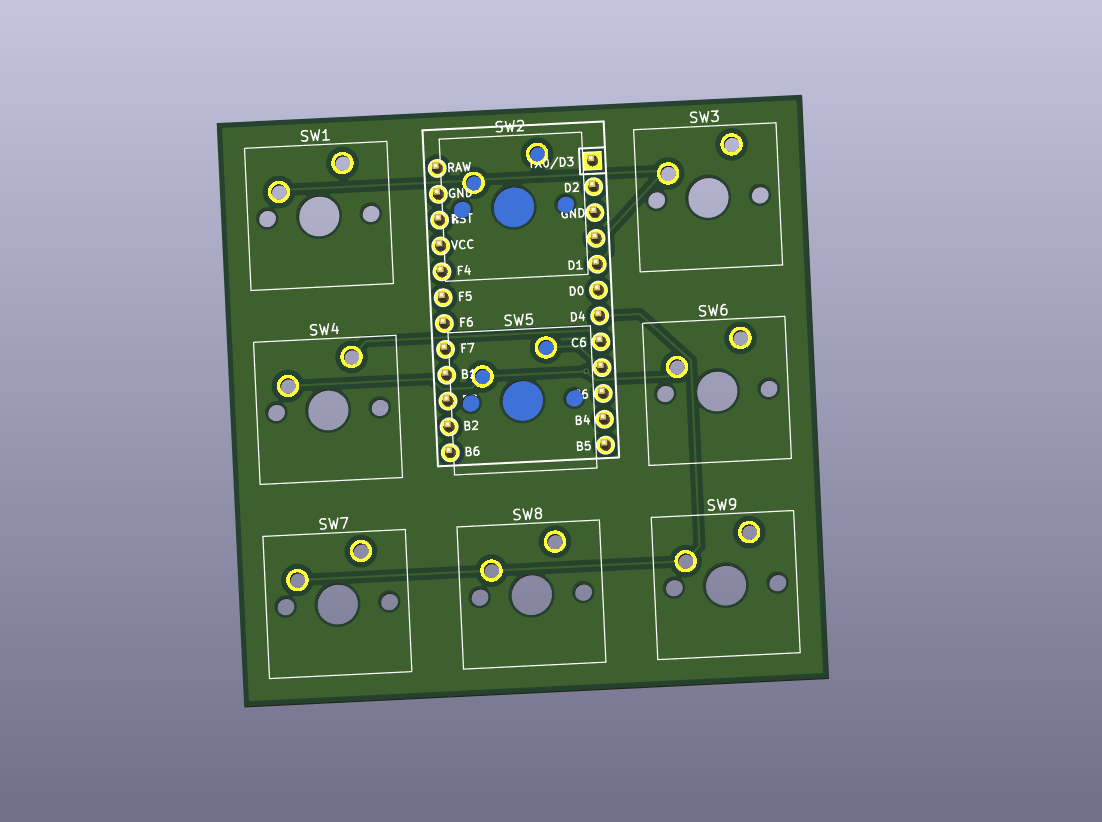

The MonkiiPad3x3 is already our friendliest build, and this is the version with the wiring done for you. Nine switch footprints, a Pro Micro, and that is genuinely the whole schematic, which makes it a good first board to read if you have never opened KiCad before. We would suggest starting here rather than with one of the bigger layouts. Like the 39, it is designed but not yet fabricated, so the gallery below is CAD renders and the schematic rather than a soldered board.
